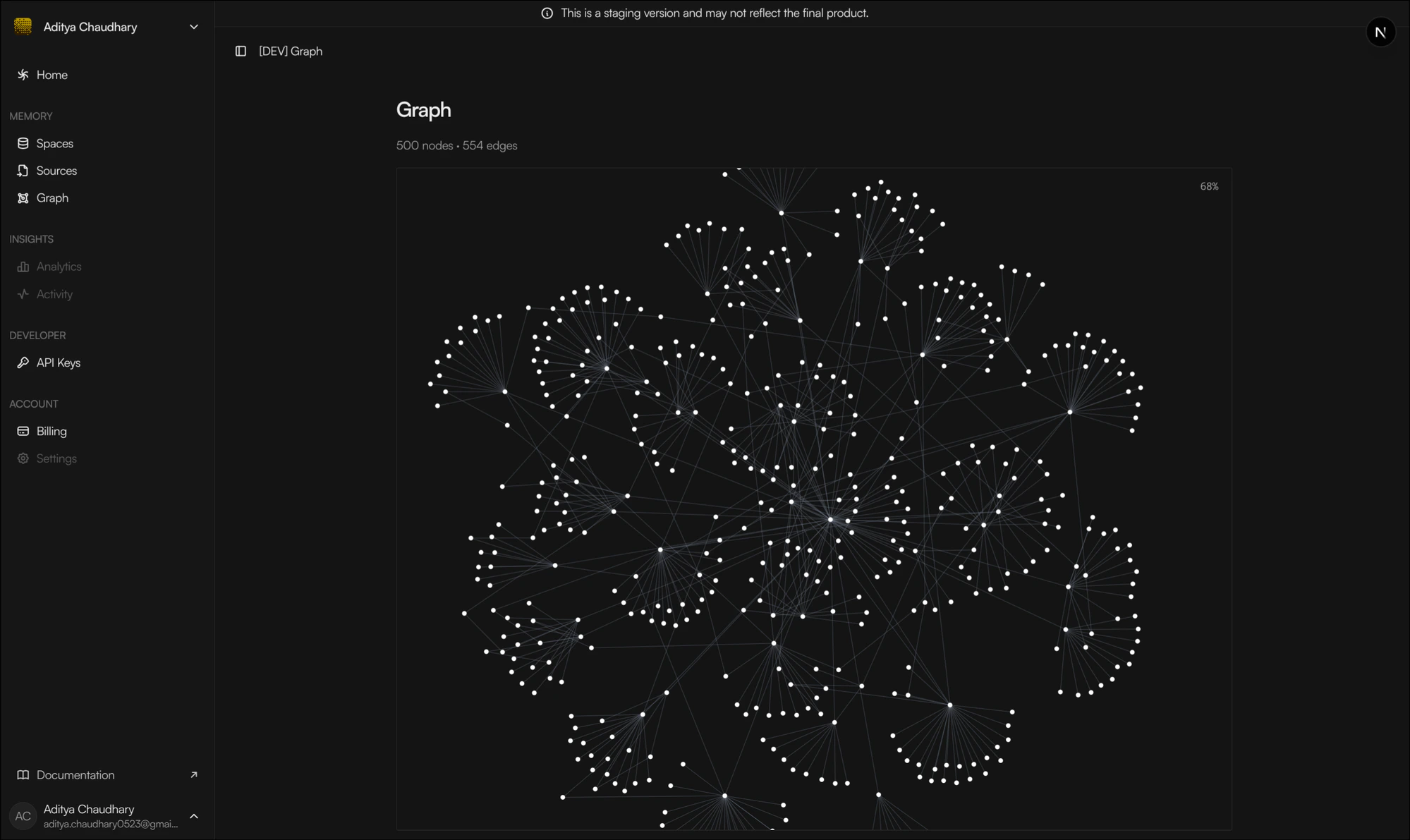

@crosmos/graph is a force-directed graph renderer for React. It is cluster-aware by default and works with any data shape — give it nodes and edges with ids and you get an interactive canvas. Crosmos knowledge graph with cluster-aware layout — 500 nodes and 554 edges arranged in distinct communities

​
Install

npm install @crosmos/graph react react-dom react-force-graph-2d
react, react-dom, and react-force-graph-2d are peer dependencies. Install them in your host app so you don’t end up with duplicates.

​
Render a graph

Fetch data with whatever you already use (TanStack Query, SWR, RSC, plain fetch) and pass arrays straight in.
import { ForceGraph, type BaseNode, type BaseEdge } from "@crosmos/graph";
import "@crosmos/graph/styles.css";

interface MyNode extends BaseNode {
  label: string;
  team: string;
}

interface MyEdge extends BaseEdge {
  label: string;
}

export function MyGraph({ nodes, edges }: { nodes: MyNode[]; edges: MyEdge[] }) {
  return (
    <ForceGraph<MyNode, MyEdge>
      nodes={nodes}
      edges={edges}
      getNodeLabel={(n) => n.label}
      getEdgeLabel={(e) => e.label}
      onNodeClick={(n) => console.log("clicked", n.team)}
    />
  );
}
The package only exposes generic shapes — BaseNode { id } and BaseEdge { id, source, target }. Carry your domain fields on the node and edge directly; accessor functions stay fully type-safe.

​
Mock data for development

A 500-node mock dataset ships with the package and is useful for screenshots, performance tests, and trying tuning options.
import { MOCK_NODES, MOCK_EDGES } from "@crosmos/graph/mock";
The dataset mirrors a production-faithful shape: one USER hub, the 7 canonical entity types, the 23-relation vocabulary, and bimodal confidence scores. It’s deterministic across loads.

​
What’s next

Reference

Every prop, the imperative handle, data sources, clustering, and SSR notes.

Theme

Every theme key, with defaults and the CSS variables that drive popovers and the zoom indicator.
Targets modern evergreen browsers (latest two majors of Chrome, Edge, Firefox, Safari). The default CSS uses oklch() color, which falls back to no background on older browsers.
Licensed under MIT.
